XBull USA / 9 products

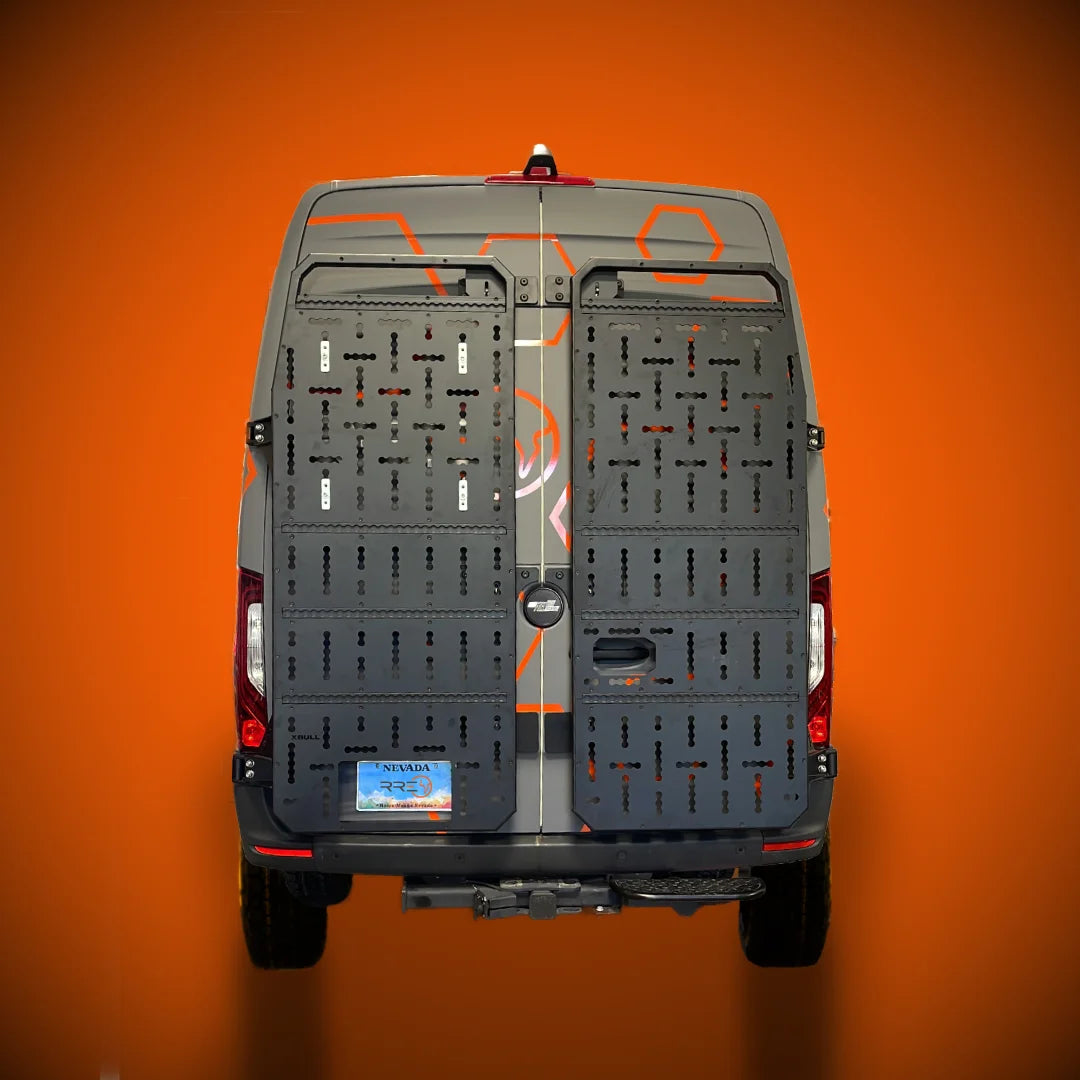

Rear Door Carrier System
Start with the base carrier for your Sprinter rear door carrier system, then add only the cargo, wheel, winter, access, and visibility components your layout needs.
- Fits2019+ Mercedes-Benz Sprinter VS30 / 907
- Requires180-degree rear door hinges
- MountingNo drilling into the doors
- SupportStocked and supported in the USA
Shop Rear Door Carrier System
How the system works
Build your rear door setup in three steps.
-
Choose your carrier
Start with the no-drill carrier for the driver door, the passenger door, or both. Every other XBull component mounts to it.
- No-Drill Rear Door Carrier from $1,890.00
-
Add storage
Pick a cargo box, a spare wheel carrier or the ski rack for the gear you want outside the van.
- B500 Lockable Aluminum Rear Cargo Box $1,550.00
- B900 Lockable Aluminum Rear Cargo Box $1,990.00
- B1700 Rear Cargo and Ski Box $3,880.00

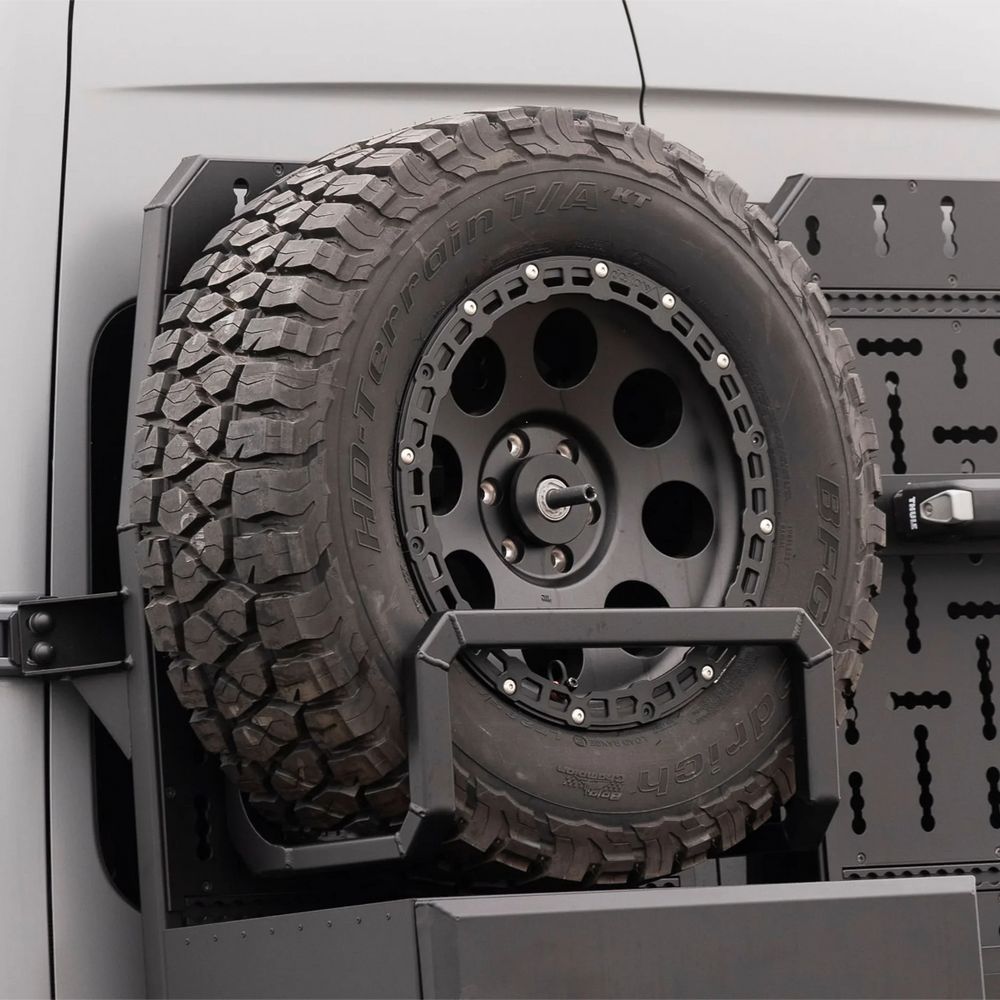

- Spare Wheel Carrier $1,050.00

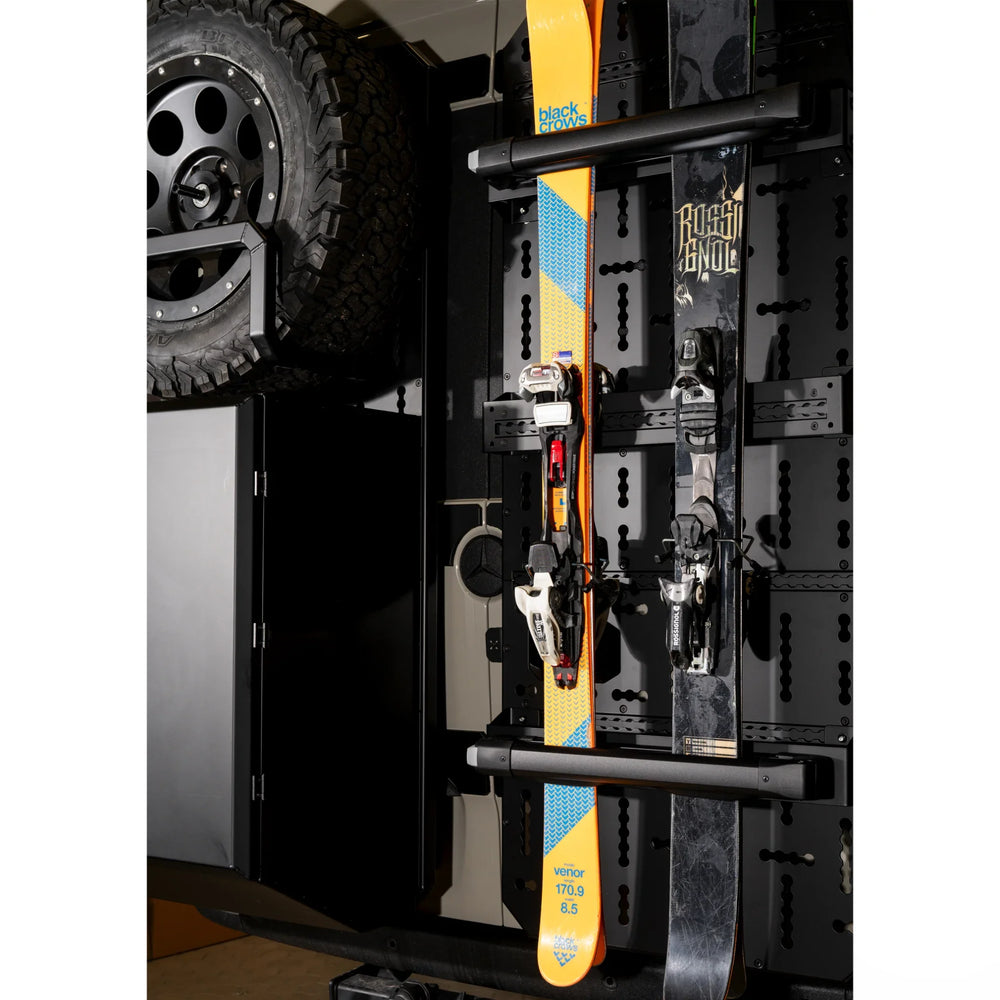

- Lockable Ski and Snowboard Rack $1,314.00
-
Keep it road-ready
When gear covers your lamps, plate or door release, these parts restore visibility and access.
- Tail Light Repeater Kit $1,150.00
- LED License Plate Relocation Bracket $399.00

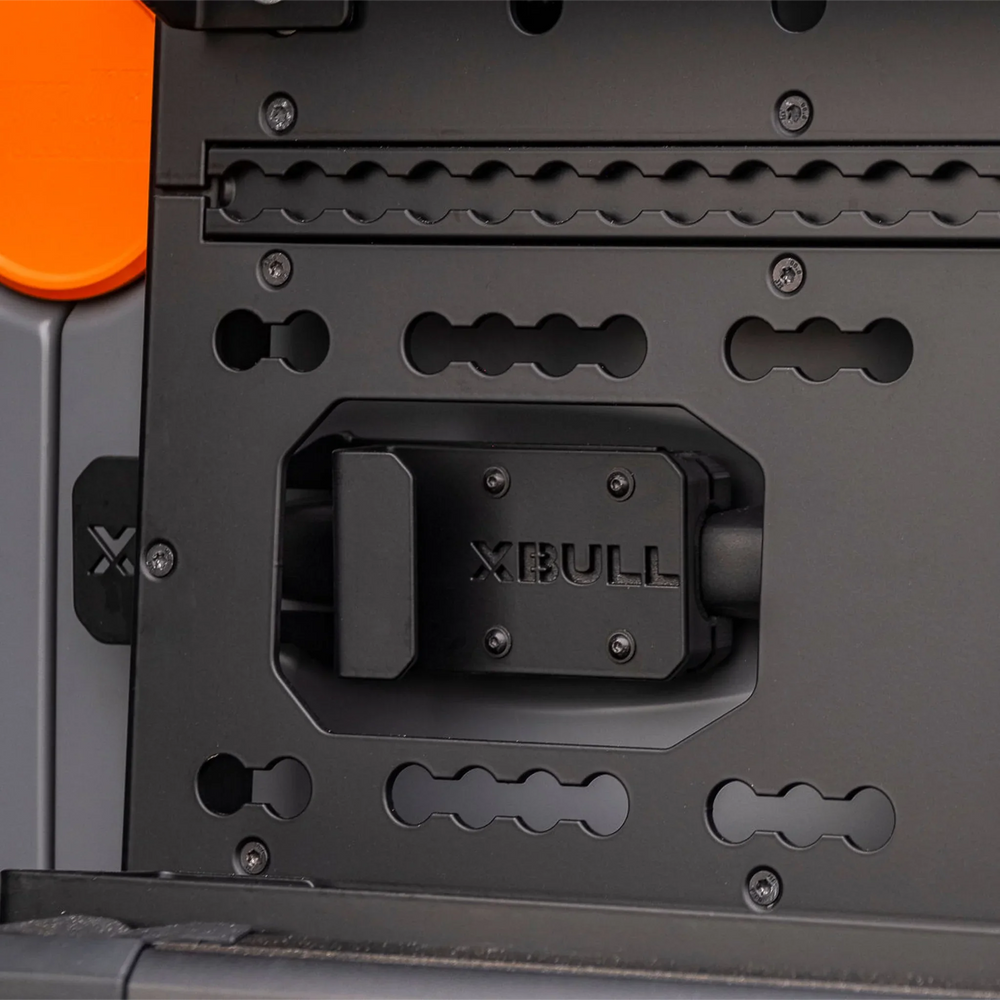

- Rear Door Handle Extension $299.00
Compare cargo boxes
Which XBull box fits your gear?
All three boxes are lockable, powder-coated aluminum and mount to the XBull rear door carrier.
| Specification | B500 | B900 | B1700 |
|---|---|---|---|
| Best for | A compact aluminum cargo box for recovery gear, camp equipment, and everyday items that need secure exterior storage. | A mid-size aluminum rear box with organized, lockable storage for equipment that needs to remain accessible outside the van. | A long-format aluminum rear box for skis, boards, tools, and expedition gear that belongs outside the living space. |
| External dimensions | 47 x 72 x 38 cm (18.5 x 28.3 x 15.0 in) | 88 x 72 x 38 cm (34.6 x 28.3 x 15.0 in) | 170 x 70 x 38 cm (66.9 x 27.6 x 15.0 in) |
| Weight | Approx. 11.8 kg (26.0 lb) | Approx. 18.3 kg (40.3 lb) | Approx. 28 kg (61.7 lb) |
| Mounting | XBull rear door carrier system | Left or right side of XBull rear door carrier | Right side of the XBull rear door carrier; left-hinged version as a special order on request |
| Price | $1,550.00 | $1,990.00 | $3,880.00 |
Larger boxes can cover tail lights or the license plate. Plan for the tail light repeater kit or the LED plate bracket if your layout needs them.
Questions and answers
Rear door carrier FAQ
Answers to the questions we hear most about fitting the XBull system to a 2019+ Sprinter. Still unsure? Ask XBull USA.
Does the XBull rear door carrier require drilling?
No. The XBull carrier uses a five-point attachment: fasteners at the factory rear door hinges plus door plates that are bonded to the door. The published XBull installation method needs no drilling into the sheet metal of your Sprinter's rear doors. Allow the adhesive to cure as specified in the current XBull instructions before loading the carrier.
Which Sprinter vans does the XBull rear door carrier fit?
The carrier is built for the Mercedes-Benz Sprinter VS30 / 907 from model year 2019 onward and requires 180-degree rear door hinges. Before ordering, check your hinge type, door condition, rear cameras and sensors, and any accessories already on the doors. XBull USA can review your van with you before you buy.
My Sprinter does not have 180-degree rear door hinges. Can I still fit the carrier?
The XBull rear door carrier requires 180-degree rear door hinges. If your van has a different hinge type, contact XBull USA before ordering so we can review your van and your options.
Should I order the driver side, the passenger side or both?
The carrier is sold for the driver side, the passenger side, or both doors as a pair. Each side measures 1700 x 700 mm (66.9 x 27.6 in) and weighs about 17.5 kg (38.6 lb) including the frame, fill panels and mounting hardware. Pick the sides based on the boxes, spare wheel or ski rack you plan to carry.
What can I mount on the XBull carrier?
The carrier's airline-track plates take the XBull B500, B900 and B1700 cargo boxes, the spare wheel carrier and the lockable ski and snowboard rack, as well as standard airline-track accessories. The LED license plate bracket, tail light repeater kit and rear door handle extension keep the van legal and easy to use once gear is mounted.
Which XBull cargo box should I choose?
The B500 (47 x 72 x 38 cm, about 11.8 kg) is the compact option for recovery gear and camp equipment. The B900 (88 x 72 x 38 cm, about 18.3 kg) is the mid-size box with adjustable shelving and mounts left or right. The B1700 is the long 170 cm box for skis, boards and oversized gear, at about 28 kg.
What size spare wheel fits the XBull spare wheel carrier?
The spare wheel carrier takes tire widths from 225 to 300 mm (8.9 to 11.8 in), with wider tires on request, and wheel center bores from 60 to 90 mm, which covers the Sprinter's 84.1 mm bore. Confirm wheel diameter, offset, weight and door clearance before ordering.
Will a cargo box or spare wheel block my tail lights or license plate?
It can. Larger loads such as the B900 and B1700 can cover required lamps or the license plate. The XBull tail light repeater kit restores rear signals, and the LED license plate relocation bracket moves and lights the plate. Check that every lamp and the plate are visible and meet your state's requirements before driving.
Can I still open the rear doors and reach the handle with gear mounted?
Yes. The carrier is mounted to the rear door, so it swings open with it. A door limiter is included with the base carrier, so you can adjust how far the door opens. Because mounted cargo can make the factory release harder to reach, the XBull rear door handle extension moves the operating point around the gear. It bolts on without permanent body modification.
What is the XBull carrier made of?
The carrier frame is TIG-welded, powder-coated aluminum with powder-coated airline-track plates. The XBull cargo boxes, ski rack and plate bracket are also powder-coated aluminum, and the spare wheel carrier is satin-black aluminum.
How is the XBull rear door carrier installed?
A professional fitment review is recommended. The carrier attaches at the rear door hinges and through bonded door plates, following the current XBull instructions and adhesive cure schedule. The carrier ships without adhesive; choose "With Gluing Kit" to add Sika 252 black adhesive and Sika 206 G+P primer for $50 per side. Before driving, verify hinge type, camera and sensor clearances, lamp and plate visibility, axle loading and all load ratings.
Where is XBull made, and who supports it in the US?
XBull products are developed in Germany and manufactured in Europe. RRE Global is the official U.S. distributor, and XBull products are stocked and supported in the USA. You can reach XBull USA through the contact page or by phone at +1 725 205 0101.
How do I confirm fitment before I order?
Contact XBull USA with your Sprinter's model year, hinge type and the accessories you want to carry. We will review your van, carrier position and accessory layout before you order.
